JDBC|Servlets : BoneCP DataSource Oracle - Tomcat

Master Core Java, JDBC & Servlets!

Subscribe to Ram N Java for beginner-friendly coding walkthroughs, database connection pooling demos, and practical backend architecture guides!

🔔 Subscribe to Ram N Java

Why Use BoneCP with Oracle Database?

In enterprise-grade Java web applications interacting with an Oracle Database, creating new database connections for each incoming request causes severe overhead and degrades application response times. Utilizing an optimized Connection Pool ensures database connections are pre-instantiated, managed, and reused efficiently.

BoneCP is a blazing-fast, lock-free JDBC connection pool library designed to deliver exceptional throughput under concurrent workloads. Configuring BoneCP as a JNDI DataSource within Apache Tomcat allows servlets to cleanly obtain Oracle database connections while offloading resource management to the container.

Configuring BoneCP DataSource for Oracle in Tomcat

To integrate BoneCP with an Oracle database in Apache Tomcat, configure a JNDI <Resource> element inside context.xml or server.xml:

Driver & URL: Use the Oracle thin driver oracle.jdbc.driver.OracleDriver along with the connection string (e.g., jdbc:oracle:thin:@localhost:1521:xe).
Credentials: Specify your Oracle schema credentials (username and password).
Partition Tuning: Set pool parameters such as partitionCount, maxConnectionsPerPartition, and minConnectionsPerPartition to optimize performance for your application's load.

// Lookup Oracle DataSource via JNDI inside your Servlet

    Context initContext = new InitialContext();

    Context envContext  = (Context) initContext.lookup("java:/comp/env");

    DataSource ds = (DataSource) envContext.lookup("jdbc/OracleDB");


    // Borrow connection from BoneCP pool

    try (Connection conn = ds.getConnection()) {

        System.out.println("BoneCP Oracle Connection established successfully!");

    }

Key Advantages of BoneCP with Oracle

High Concurrency: Partitioned connection management significantly minimizes thread synchronization bottlenecks.
Clean Architectural Separation: Connection details are externalized to Tomcat configuration rather than hardcoded in servlet logic.
Automatic Resource Management: Safely caps the maximum concurrent connections to prevent exhausting Oracle database resources.

Recommended Related Tutorials

Explore more database connection pooling guides and tutorials from Ram N Java:

Click here to watch in Youtube : https://www.youtube.com/watch?v=ClqBBHZ8Zio&index=2&list=UUhwKlOVR041tngjerWxVccw

Click the below Image to Enlarge

JDBC|Servlets : BoneCP DataSource Oracle - Tomcat

ConnectionManager.java

import com.jolbox.bonecp.BoneCPDataSource;

public class ConnectionManager
{

    private static BoneCPDataSource boneCPDataSource = null;

    public static BoneCPDataSource getBoneCPDataSource()
    {
        return boneCPDataSource;
    }

    public static void setBoneCPDataSource( BoneCPDataSource boneCPDataSource )
    {
        ConnectionManager.boneCPDataSource = boneCPDataSource;
    }

    public static BoneCPDataSource configureBoneCPDataSource()
    {
        try
        {
            /*
             * load the database driver (make sure this is in your classpath!)
             */
            Class.forName("oracle.jdbc.OracleDriver");

            /*
             * setup the BoneCPDataSource
             */

            BoneCPDataSource boneCPDataSource = new BoneCPDataSource();

            boneCPDataSource.setJdbcUrl("jdbc:oracle:thin:@localhost:1521:xe");
            boneCPDataSource.setUsername("hr");
            boneCPDataSource.setPassword("hr");
            boneCPDataSource.setMinConnectionsPerPartition(5);
            boneCPDataSource.setMaxConnectionsPerPartition(10);
            boneCPDataSource.setPartitionCount(1);

            setBoneCPDataSource(boneCPDataSource);

            System.out
                    .println("contextInitialized.....boneCPDataSource is configured");

        }
        catch( Exception exe )
        {
            exe.printStackTrace();
        }

        return boneCPDataSource;
    }

    public static void closeBoneCPDataSource()
    {

        try
        {
            BoneCPDataSource boneCPDataSource = ConnectionManager
                    .getBoneCPDataSource();

            if( boneCPDataSource != null )
            {
                /*
                 * This method must be called only once when the application
                 * stops.
                 */

                boneCPDataSource.close();
                System.out
                        .println("contextDestroyed.....boneCPDataSource is closed!");
            }

        }
        catch( Exception e )
        {
            e.printStackTrace();
        }
    }

}

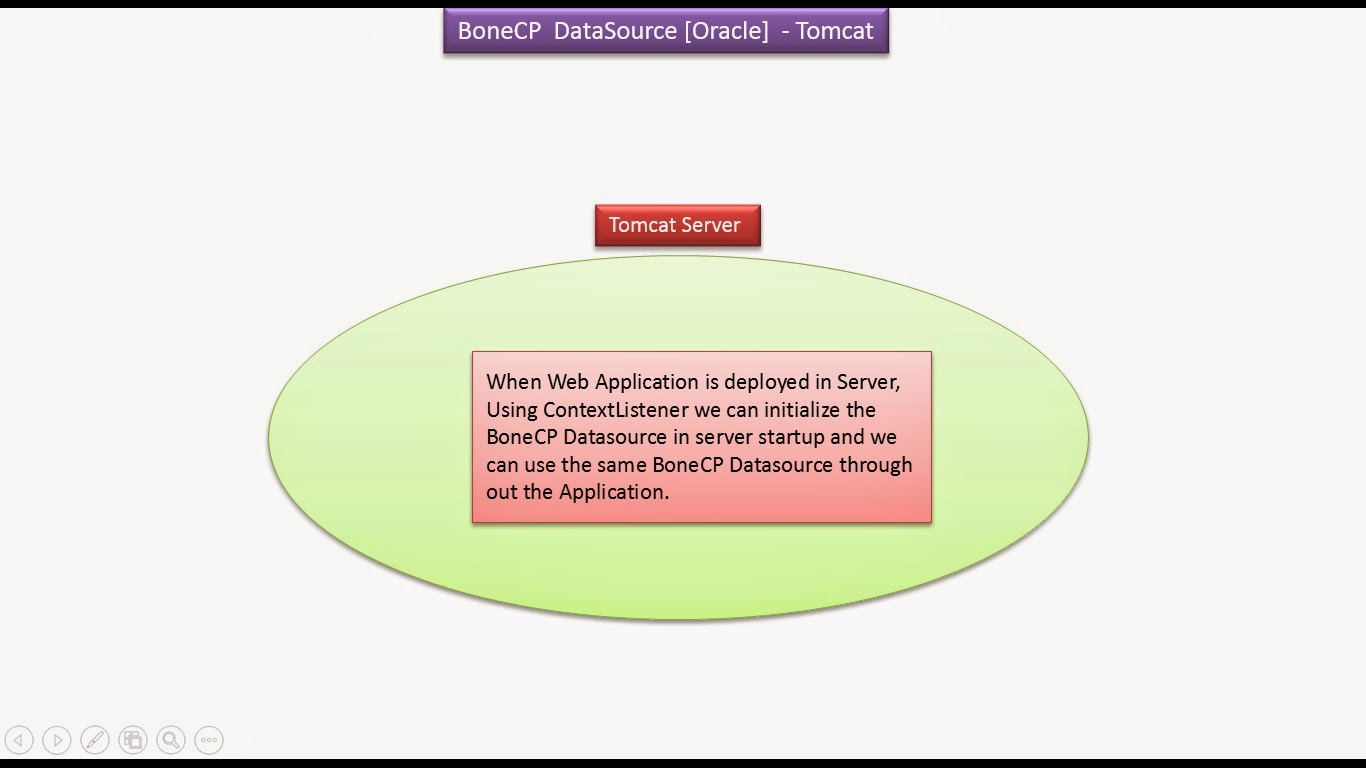

ContextListener.java

import javax.servlet.ServletContextEvent;
import javax.servlet.ServletContextListener;

public class ContextListener implements ServletContextListener
{

    @Override
    public void contextInitialized( ServletContextEvent arg0 )
    {
        System.out.println("\n---------------------------------------------");
        System.out.println("ContextInitialized Method has been Called......");
        ConnectionManager.configureBoneCPDataSource();
        System.out.println("---------------------------------------------\n");

    }

    @Override
    public void contextDestroyed( ServletContextEvent arg0 )
    {
        System.out.println("\n---------------------------------------------");
        System.out.println("contextDestroyed Method has been Called......");
        ConnectionManager.closeBoneCPDataSource();
        System.out.println("---------------------------------------------\n");

    }

}

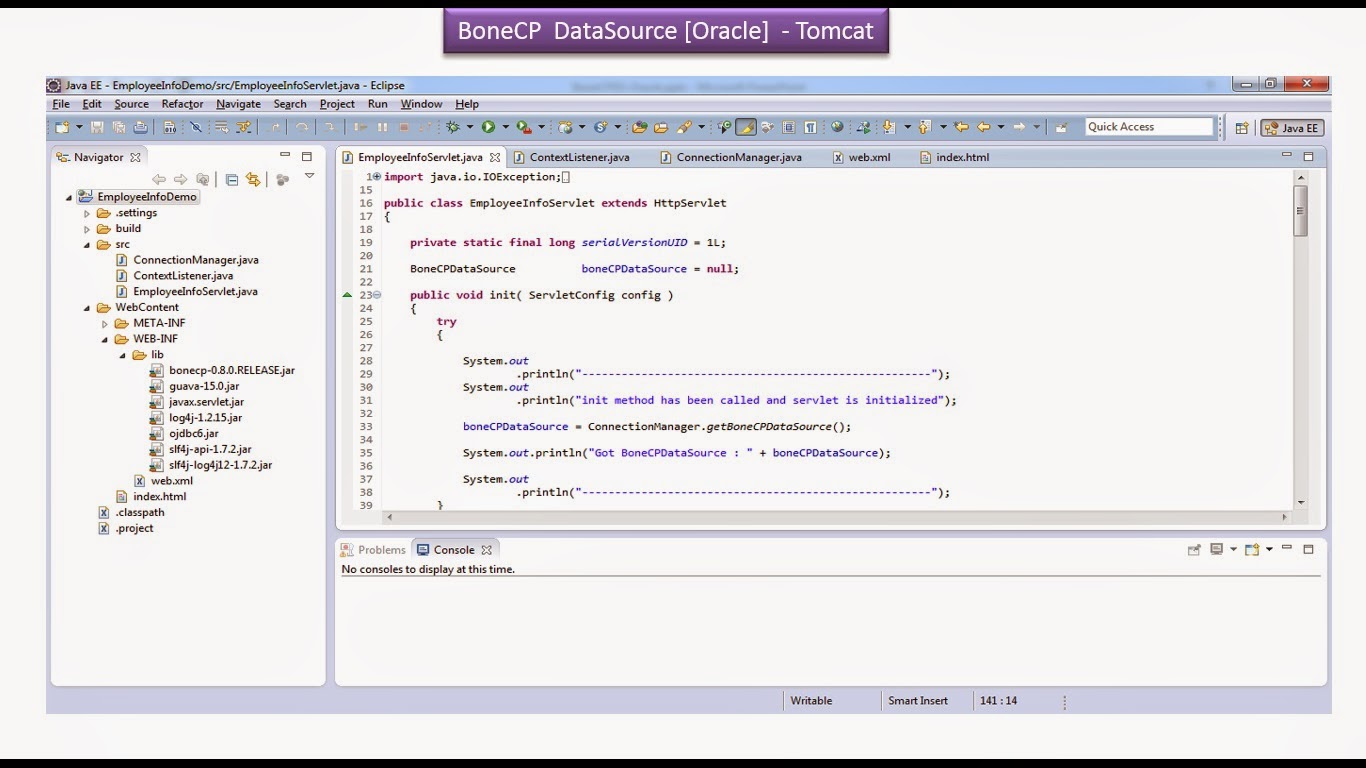

EmployeeInfoServlet.java

import java.io.IOException;
import java.io.PrintWriter;
import java.sql.Connection;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.sql.Statement;

import javax.servlet.ServletConfig;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import com.jolbox.bonecp.BoneCPDataSource;

public class EmployeeInfoServlet extends HttpServlet
{

    private static final long serialVersionUID = 1L;

    BoneCPDataSource          boneCPDataSource = null;

    public void init( ServletConfig config )
    {
        try
        {

            System.out
                    .println("-----------------------------------------------------");
            System.out
                    .println("init method has been called and servlet is initialized");

            boneCPDataSource = ConnectionManager.getBoneCPDataSource();

            System.out.println("Got BoneCPDataSource : " + boneCPDataSource);

            System.out
                    .println("-----------------------------------------------------");
        }

        catch( Exception exe )
        {
            exe.printStackTrace();
        }

    }

    public void doGet( HttpServletRequest request, HttpServletResponse response )
            throws ServletException, IOException
    {

        System.out
                .println("-----------------------------------------------------");
        System.out.println("doGet method has been called");
        System.out
                .println("-----------------------------------------------------");

        response.setContentType("text/html");

        PrintWriter out = response.getWriter();
        String title = "Employee Information From Oracle Database";
        out.print("<html><body bgcolor=\"#f0f0f0\">");
        out.print("<h1 align=\"center\">" + title + "</h1>\n");

        showEmployeeInformation(out);

        out.print("</body></html>");
    }

    public void destroy()
    {
        System.out
                .println("-----------------------------------------------------");
        System.out
                .println("destroy method has been called and servlet is destroyed");

        System.out
                .println("-----------------------------------------------------");
    }

    private void showEmployeeInformation( PrintWriter out )
    {
        Connection connection = null;
        Statement stmt = null;
        try
        {

            /*
             * Get connection from the DataSource
             */

            connection = boneCPDataSource.getConnection();

            /*
             * Execute the Query
             */

            stmt = connection.createStatement();

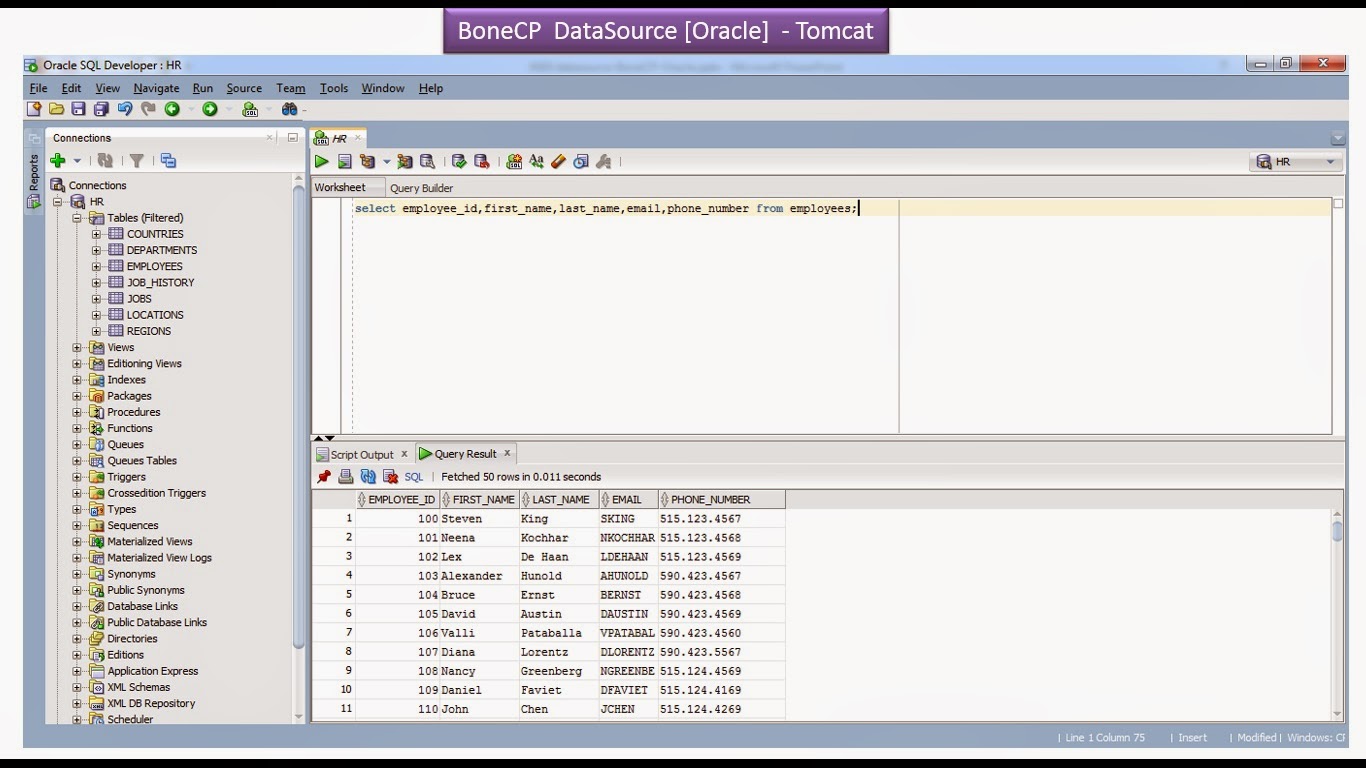

            String sql = "select employee_id,first_name,last_name,email,phone_number from employees";
            ResultSet rs = stmt.executeQuery(sql);

            /*
             * Iterate the ResultSet and get each row Information.
             */
            while( rs.next() )
            {
                /*
                 * Retrieve by column name
                 */
                int id = rs.getInt("employee_id");
                String firstName = rs.getString("first_name");
                String lastName = rs.getString("last_name");
                String email = rs.getString("email");
                String phoneNumber = rs.getString("phone_number");

                /*
                 * Display values
                 */
                out.print("employee_id: " + id + "<br>");
                out.print("first_name: " + firstName + "<br>");
                out.print("last_name: " + lastName + "<br>");
                out.print("email: " + email + "<br>");
                out.println("phone_number: " + phoneNumber + "<br>");
                out.println("-------------------------------------------"
                        + "<br>");
            }
            rs.close();

        }

        catch( Exception e )
        {
            e.printStackTrace();
        }
        finally
        {
            /*
             * finally block used to close resources
             */
            try
            {
                if( stmt != null )
                {
                    stmt.close();
                }
            }
            catch( SQLException sqlException )
            {
                sqlException.printStackTrace();
            }
            try
            {
                if( connection != null )
                {
                    connection.close();
                }
            }
            catch( SQLException sqlException )
            {
                sqlException.printStackTrace();
            }
        }

    }

}

web.xml

<?xml version="1.0" encoding="ISO-8859-1"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns="http://java.sun.com/xml/ns/javaee"
    xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
    metadata-complete="true" version="3.0">
    <display-name>EmployeeInfoDemo</display-name>
    <description>
        This is a simple web application with a source code organization
        based on the recommendations of the Application Developer's Guide.
    </description>
    <servlet>
        <servlet-name>employeeInfoServlet</servlet-name>
        <servlet-class>EmployeeInfoServlet</servlet-class>
    </servlet>
    <servlet-mapping>
        <servlet-name>employeeInfoServlet</servlet-name>
        <url-pattern>/employeeInfo</url-pattern>
    </servlet-mapping>

    <listener>
        <listener-class>ContextListener</listener-class>
    </listener>

</web-app>

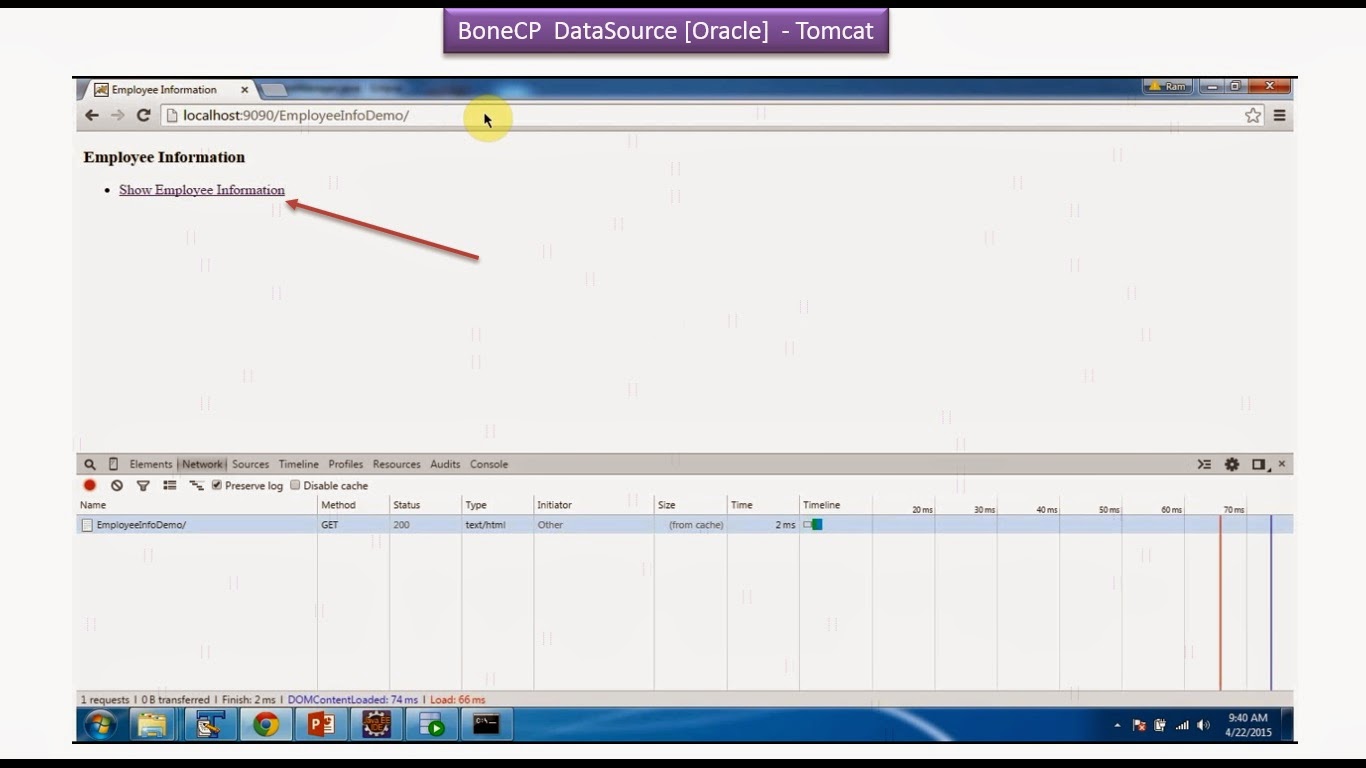

index.html

<!DOCTYPE HTML><html lang="en"><head>
<meta charset="UTF-8">
<title>Employee Information</title>
</head>
<body>
<p>
<h3>Employee Information</H3>
<p></p>
<ul>

<li><a href="employeeInfo">Show Employee Information</a></li>

</ul>
</body></html>
